Interactive dataviz on the web with R, plotly, and shiny

Carson Sievert
Software Engineer, RStudio

Slides: bit.ly/R_Pharma

1 / 62

Your turn

(1) Open the slides in Firefox: bit.ly/R_Pharma

(2) Go to this address https://rstudio.cloud/project/446255. This hosted RStudio instance contains materials for today's workshop.

Login or sign up to RStudio Cloud (it's free)
Click "Save a Permanent Copy" to copy the project to your account.

(3) Ask me any question at any time by going to slido.com and enter event code #8464 (or use this link). I'll try to check these questions periodically (upvote questions if you'd like them answered!)

05:00

2 / 62

A minimal bar chart

Every plotly chart is powered by plotly.js, plus some extra R/JS magic 🎩 🐰.
plot_ly() is designed to give more "R-like" defaults

library(plotly)
plot_ly(x = c("A", "B"), y = c(1, 2))

What actually happens when a plotly object is printed and rendered locally?

3 / 62

4 / 62

Plotly figures are JSON

A Plotly figure is made up of trace(s) and a layout. A trace is a mapping from data to visual.

var trace1 = {
  x: ['giraffes', 'orangutans', 'monkeys'],
  y: [20, 14, 23],
  name: 'SF Zoo',
  type: 'bar'
};
var trace2 = {
  x: ['giraffes', 'orangutans', 'monkeys'],
  y: [12, 18, 29],
  name: 'LA Zoo',
  type: 'bar'
};
var data = [trace1, trace2];
Plotly.newPlot('myDiv', data);

5 / 62

Now in R, with `plot_ly()`

In R, use plot_ly() (or ggplotly()) to create a plotly object, then add_trace() to add any trace you want.

plot_ly() %>%
  add_trace(
    x = c('giraffes', 'orangutans', 'monkeys'),
    y = c(20, 14, 23),
    name = 'SF Zoo',
    type = 'bar'
  ) %>%
  add_trace(
    x = c('giraffes', 'orangutans', 'monkeys'),
    y = c(12, 18, 29),
    name = 'LA Zoo',
    type = 'bar'
  )

6 / 62

`plot_ly()` syntax

Use ~ to reference a data column

zoo_dat <- tibble::tibble(
  animal = rep(c('giraffes', 'orangutans', 'monkeys'), 2),
  count = c(20, 14, 23, 12, 18, 29),
  zoo = rep(c('SF Zoo', 'LA Zoo'), each = 3)
)
zoo_dat
#> # A tibble: 6 x 3
#>   animal     count zoo
#>   <chr>      <dbl> <chr>
#> 1 giraffes      20 SF Zoo
#> 2 orangutans    14 SF Zoo
#> 3 monkeys       23 SF Zoo
#> 4 giraffes      12 LA Zoo
#> 5 orangutans    18 LA Zoo
#> 6 monkeys       29 LA Zoo

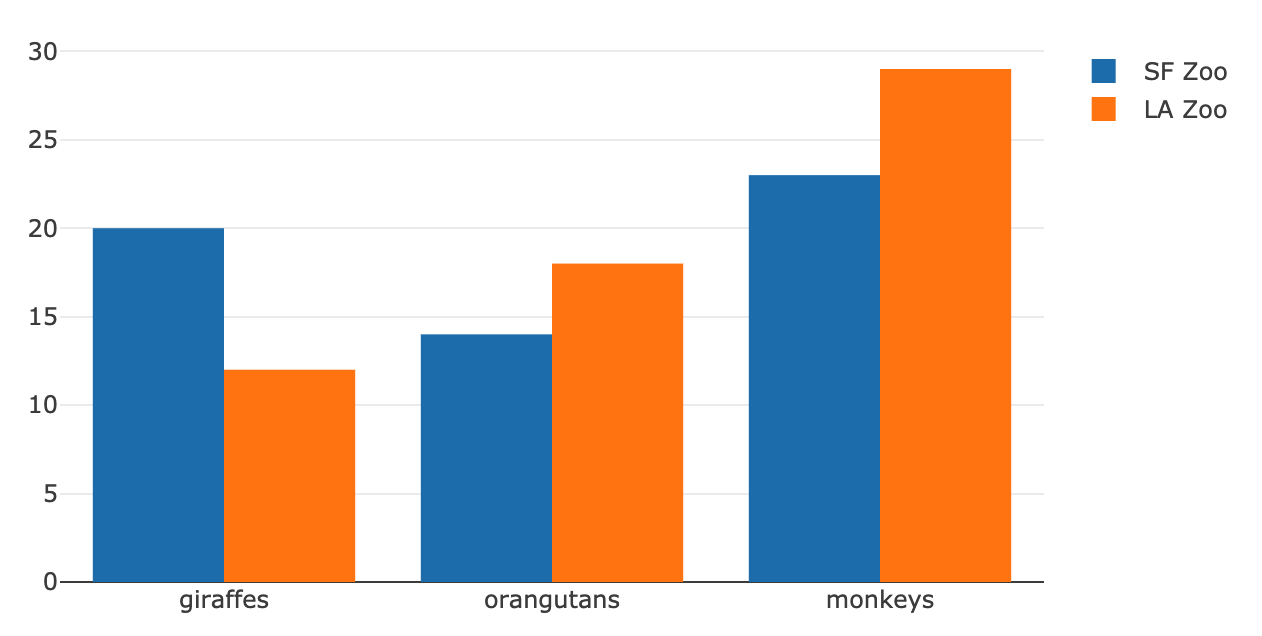

plot_ly(zoo_dat) %>%
  add_trace(
    x = ~animal,
    y = ~count,
    name = ~zoo,
    type = "bar"
  )

7 / 62

`plot_ly()` syntax

For attributes that require a scalar value (e.g. name), plot_ly() generates one trace per level.

zoo_dat <- tibble::tibble(
  animal = rep(c('giraffes', 'orangutans', 'monkeys'), 2),
  count = c(20, 14, 23, 12, 18, 29),
  zoo = rep(c('SF Zoo', 'LA Zoo'), each = 3)
)
zoo_dat
#> # A tibble: 6 x 3
#>   animal     count zoo
#>   <chr>      <dbl> <chr>
#> 1 giraffes      20 SF Zoo
#> 2 orangutans    14 SF Zoo
#> 3 monkeys       23 SF Zoo
#> 4 giraffes      12 LA Zoo
#> 5 orangutans    18 LA Zoo
#> 6 monkeys       29 LA Zoo

plot_ly(zoo_dat) %>%
  add_trace(
    x = ~animal,
    y = ~count,
    name = ~zoo,
    type = "bar"
  )

8 / 62

`plot_ly()` syntax

The split argument is a more explicit way to split data into multiple traces

zoo_dat <- tibble::tibble(
  animal = rep(c('giraffes', 'orangutans', 'monkeys'), 2),
  count = c(20, 14, 23, 12, 18, 29),
  zoo = rep(c('SF Zoo', 'LA Zoo'), each = 3)
)
zoo_dat
#> # A tibble: 6 x 3
#>   animal     count zoo
#>   <chr>      <dbl> <chr>
#> 1 giraffes      20 SF Zoo
#> 2 orangutans    14 SF Zoo
#> 3 monkeys       23 SF Zoo
#> 4 giraffes      12 LA Zoo
#> 5 orangutans    18 LA Zoo
#> 6 monkeys       29 LA Zoo

plot_ly(zoo_dat) %>%
  add_trace(
    x = ~animal,
    y = ~count,
    split = ~zoo,
    type = "bar"
  )

9 / 62

plotly_json() to view underlying JSONzoo_dat <- tibble::tibble(
  animal = rep(c('giraffes', 'orangutans', 'monkeys'), 2),
  count = c(20, 14, 23, 12, 18, 29),
  zoo = rep(c('SF Zoo', 'LA Zoo'), each = 3)
)
zoo_dat
#> # A tibble: 6 x 3
#>   animal     count zoo
#>   <chr>      <dbl> <chr>
#> 1 giraffes      20 SF Zoo
#> 2 orangutans    14 SF Zoo
#> 3 monkeys       23 SF Zoo
#> 4 giraffes      12 LA Zoo
#> 5 orangutans    18 LA Zoo
#> 6 monkeys       29 LA Zoo

plot_ly(zoo_dat) %>%
  add_trace(
    x = ~animal,
    y = ~count,
    name = ~zoo,
    type = "bar"
  ) %>%
   # Verify we get one trace per zoo
   plotly_json(FALSE)

"data": [
  {
    "x": ["giraffes", "orangutans", "monkeys"],
    "y": [12, 18, 29],
    "name": "LA Zoo",
    "type": "bar"
  }, {
    "x": ["giraffes", "orangutans", "monkeys"],
    "y": [20, 14, 23],
    "name": "SF Zoo",
    "type": "bar"
  }
]

10 / 62

`plot_ly()` syntax

More common trace types have a dedicated "layer" function (e.g., add_bars()).

zoo_dat <- tibble::tibble(
  animal = rep(c('giraffes', 'orangutans', 'monkeys'), 2),
  count = c(20, 14, 23, 12, 18, 29),
  zoo = rep(c('SF Zoo', 'LA Zoo'), each = 3)
)
zoo_dat
#> # A tibble: 6 x 3
#>   animal     count zoo
#>   <chr>      <dbl> <chr>
#> 1 giraffes      20 SF Zoo
#> 2 orangutans    14 SF Zoo
#> 3 monkeys       23 SF Zoo
#> 4 giraffes      12 LA Zoo
#> 5 orangutans    18 LA Zoo
#> 6 monkeys       29 LA Zoo

plot_ly(zoo_dat) %>%
  add_bars(
    x = ~animal,
    y = ~count,
    name = ~zoo
  )

11 / 62

`plot_ly()` syntax

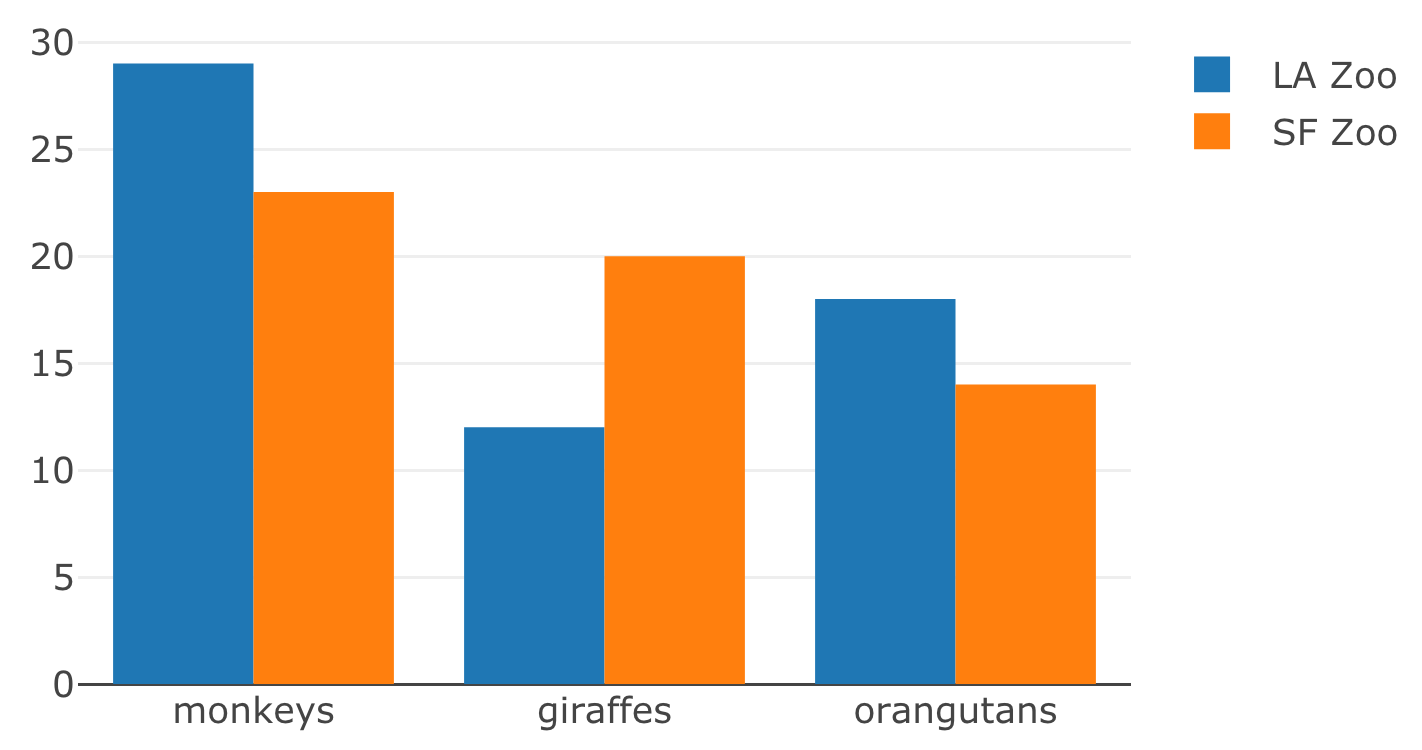

Discrete axis ordering: use factor levels (character strings appear alphabetically)

zoo_dat <- tibble::tibble(
  animal = rep(c('giraffes', 'orangutans', 'monkeys'), 2),
  count = c(20, 14, 23, 12, 18, 29),
  zoo = rep(c('SF Zoo', 'LA Zoo'), each = 3)
)
zoo_dat
#> # A tibble: 6 x 3
#>   animal     count zoo
#>   <chr>      <dbl> <chr>
#> 1 giraffes      20 SF Zoo
#> 2 orangutans    14 SF Zoo
#> 3 monkeys       23 SF Zoo
#> 4 giraffes      12 LA Zoo
#> 5 orangutans    18 LA Zoo
#> 6 monkeys       29 LA Zoo

plot_ly(zoo_dat) %>%
  add_bars(
    x = ~factor(animal, c("monkeys", "giraffes", "orangutans")),
    y = ~count,
    name = ~zoo
  )

12 / 62

`plot_ly()` color mapping

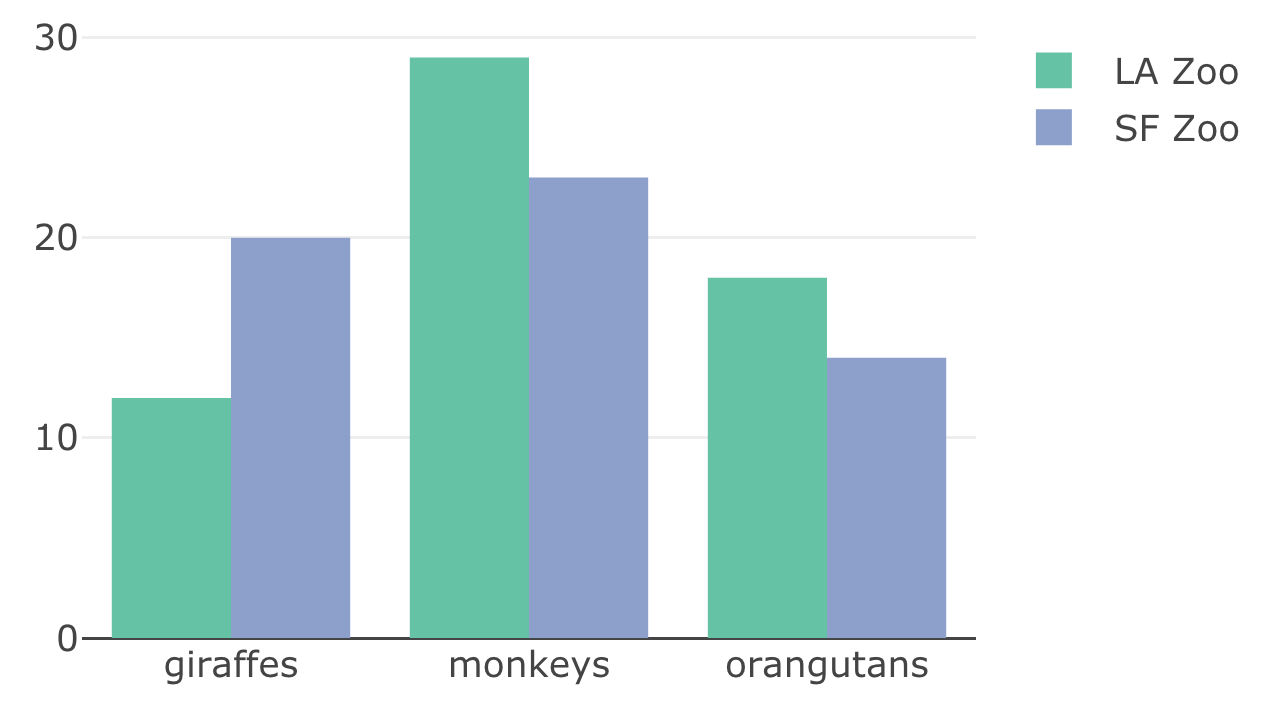

Mapping data to color will impose it's own color scheme

zoo_dat <- tibble::tibble(
  animal = rep(c('giraffes', 'orangutans', 'monkeys'), 2),
  count = c(20, 14, 23, 12, 18, 29),
  zoo = rep(c('SF Zoo', 'LA Zoo'), each = 3)
)
zoo_dat
#> # A tibble: 6 x 3
#>   animal     count zoo
#>   <chr>      <dbl> <chr>
#> 1 giraffes      20 SF Zoo
#> 2 orangutans    14 SF Zoo
#> 3 monkeys       23 SF Zoo
#> 4 giraffes      12 LA Zoo
#> 5 orangutans    18 LA Zoo
#> 6 monkeys       29 LA Zoo

plot_ly(zoo_dat) %>%
  add_bars(
    x = ~animal,
    y = ~count,
    color = ~zoo
  )

13 / 62

`plot_ly()` color mapping

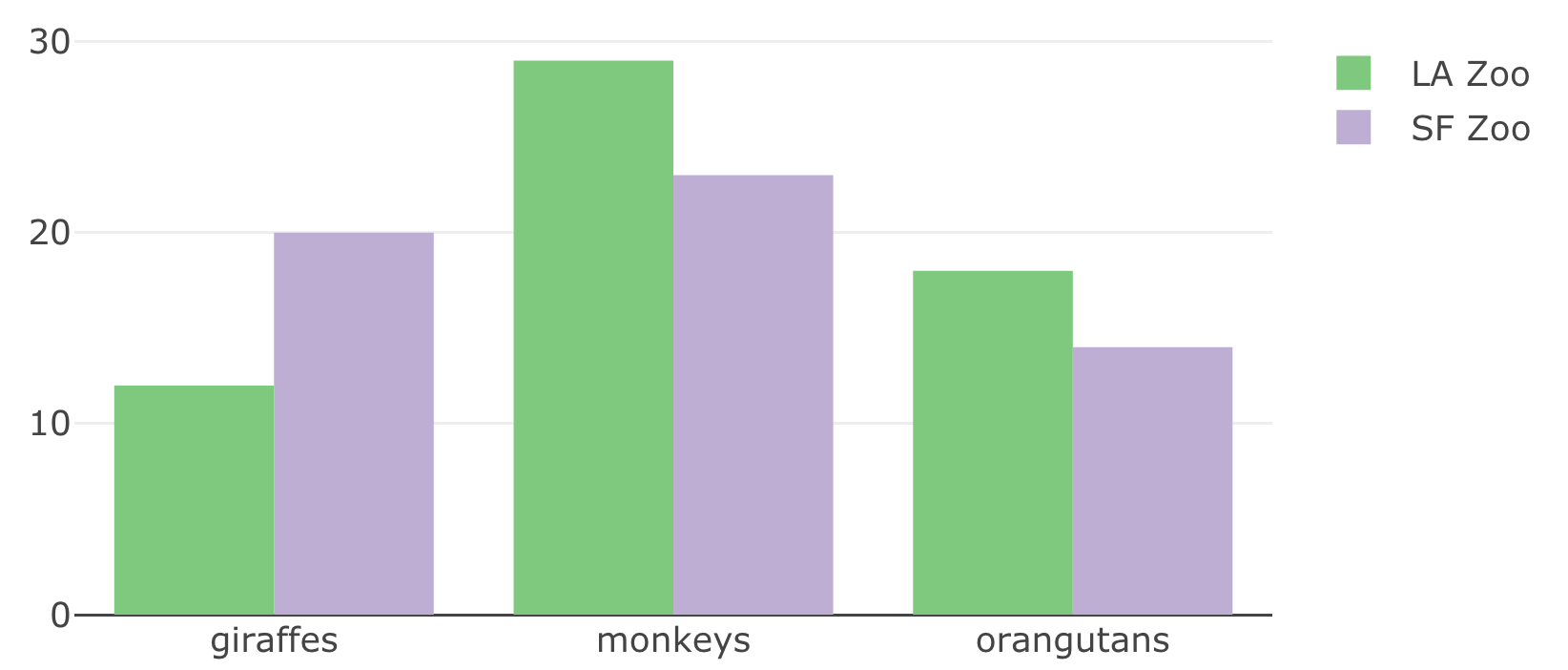

Specify the range via colors (here a colorbrewer palette name, see RColorBrewer::brewer.pal.info for options)

zoo_dat <- tibble::tibble(
  animal = rep(c('giraffes', 'orangutans', 'monkeys'), 2),
  count = c(20, 14, 23, 12, 18, 29),
  zoo = rep(c('SF Zoo', 'LA Zoo'), each = 3)
)
zoo_dat
#> # A tibble: 6 x 3
#>   animal     count zoo
#>   <chr>      <dbl> <chr>
#> 1 giraffes      20 SF Zoo
#> 2 orangutans    14 SF Zoo
#> 3 monkeys       23 SF Zoo
#> 4 giraffes      12 LA Zoo
#> 5 orangutans    18 LA Zoo
#> 6 monkeys       29 LA Zoo

plot_ly(zoo_dat) %>%
  add_bars(
    x = ~animal,
    y = ~count,
    color = ~zoo,
    colors = "Accent"
  )

14 / 62

`plot_ly()` color mapping

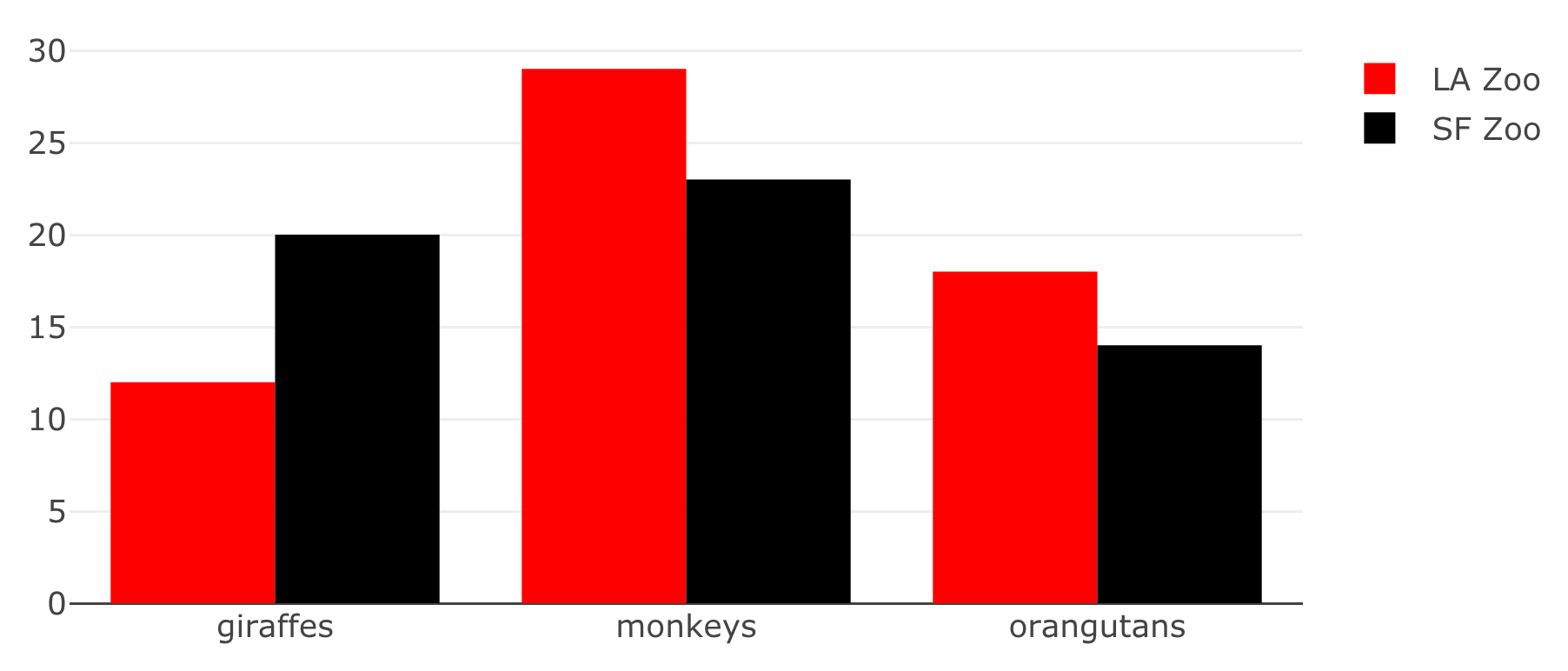

Provide your own palette if you want. See ?plot_ly for more details.

zoo_dat <- tibble::tibble(
  animal = rep(c('giraffes', 'orangutans', 'monkeys'), 2),
  count = c(20, 14, 23, 12, 18, 29),
  zoo = rep(c('SF Zoo', 'LA Zoo'), each = 3)
)
zoo_dat
#> # A tibble: 6 x 3
#>   animal     count zoo
#>   <chr>      <dbl> <chr>
#> 1 giraffes      20 SF Zoo
#> 2 orangutans    14 SF Zoo
#> 3 monkeys       23 SF Zoo
#> 4 giraffes      12 LA Zoo
#> 5 orangutans    18 LA Zoo
#> 6 monkeys       29 LA Zoo

plot_ly(zoo_dat) %>%
  add_bars(
    x = ~animal,
    y = ~count,
    color = ~zoo,
    colors = c(
      "SF Zoo" = "black",
      "LA Zoo" = "red"
    )
  )

15 / 62

`plot_ly()` syntax

Use color/colors for fill-color and stroke/strokes for outline-color

zoo_dat <- tibble::tibble(
  animal = rep(c('giraffes', 'orangutans', 'monkeys'), 2),
  count = c(20, 14, 23, 12, 18, 29),
  zoo = rep(c('SF Zoo', 'LA Zoo'), each = 3)
)
zoo_dat
#> # A tibble: 6 x 3
#>   animal     count zoo
#>   <chr>      <dbl> <chr>
#> 1 giraffes      20 SF Zoo
#> 2 orangutans    14 SF Zoo
#> 3 monkeys       23 SF Zoo
#> 4 giraffes      12 LA Zoo
#> 5 orangutans    18 LA Zoo
#> 6 monkeys       29 LA Zoo

plot_ly(zoo_dat) %>%
  add_bars(
    x = ~animal,
    y = ~count,
    split = ~zoo,
    stroke = ~zoo,
    strokes = c(
      "SF Zoo" = "black",
      "LA Zoo" = "red"
    )
  )

16 / 62

Your turn

zoo_dat <- tibble::tibble(
  animal = rep(c('giraffes', 'orangutans', 'monkeys'), 2),
  count = c(20, 14, 23, 12, 18, 29),
  zoo = rep(c('SF Zoo', 'LA Zoo'), each = 3)
)
zoo_dat
#> # A tibble: 6 x 3
#>   animal     count zoo
#>   <chr>      <dbl> <chr>
#> 1 giraffes      20 SF Zoo
#> 2 orangutans    14 SF Zoo
#> 3 monkeys       23 SF Zoo
#> 4 giraffes      12 LA Zoo
#> 5 orangutans    18 LA Zoo
#> 6 monkeys       29 LA Zoo

plot_ly(zoo_dat) %>%
  add_bars(
    x = ~animal,
    y = ~count,
    color = ~zoo,
    stroke = "black",
    span = I(5)
  )

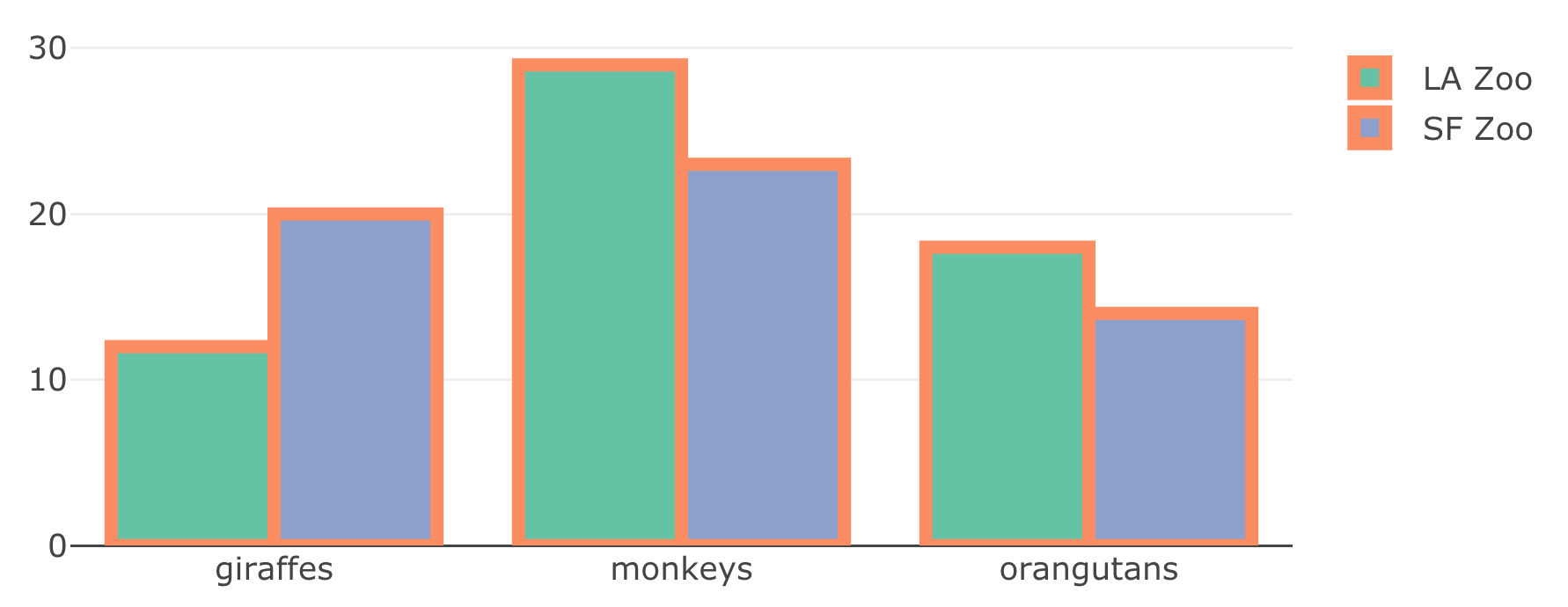

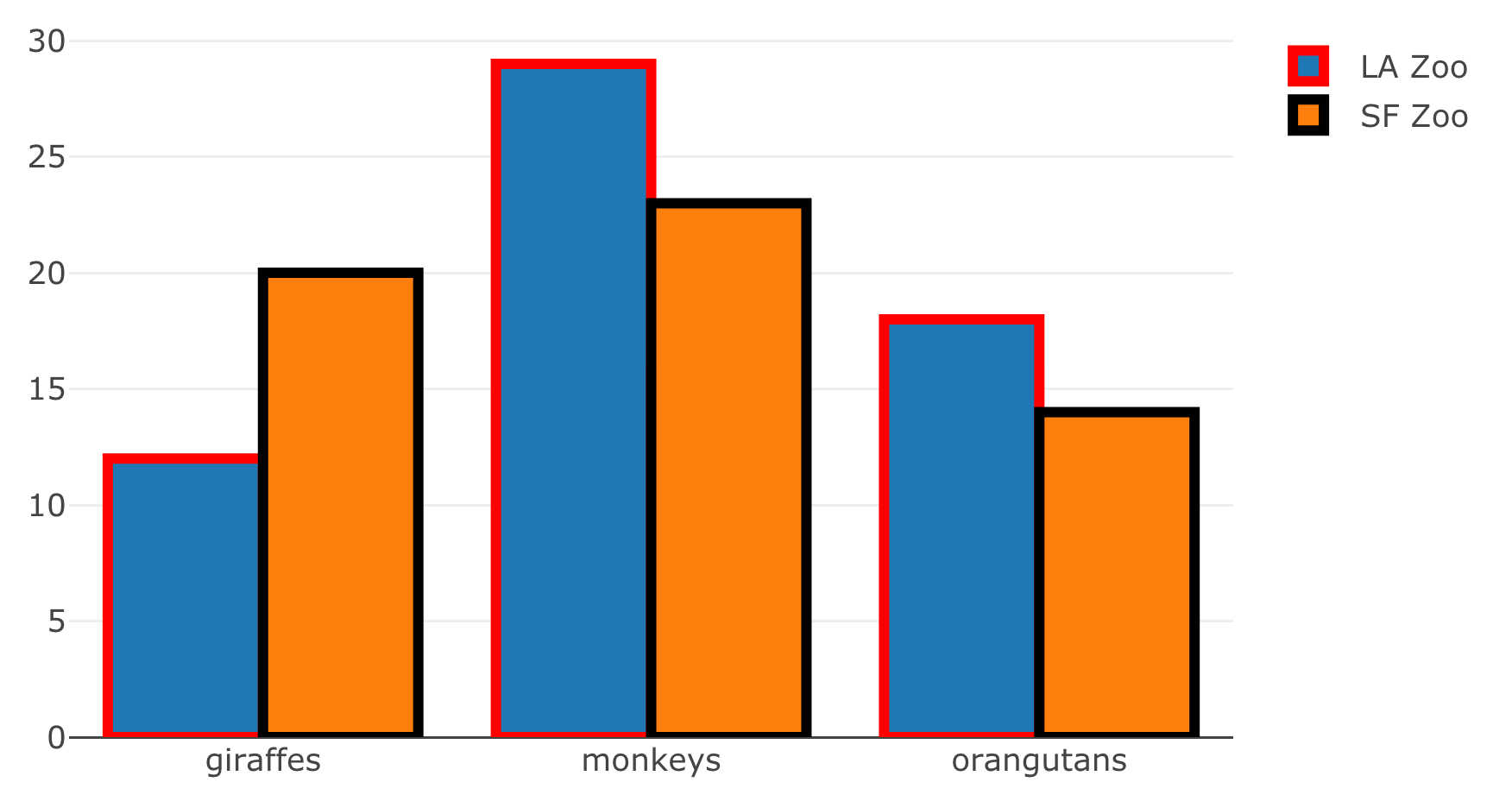

What does the span argument control?
Can you make the span be a function of count?
Why isn't the stroke on this plot black?

05:00

17 / 62

Getting help

Documentation

How-to guide: plot.ly/r
R user guide: plotly-r.com
R documentation: rdocumentation.org

Q&A

Plotly+Shiny+R related questions: community.rstudio.com
Plotly.js specific questions: community.plot.ly
Another option: stackoverflow.com

Debugging, in general

Use plotly_json() to inspect the underlying JSON
- Especially useful for debugging things that map to plotly.js (e.g., color, stroke, ggplotly()).
plotly_json() should align with the figure reference https://plot.ly/javascript/reference
The online figure reference doesn't always reflect the version of plotly.js used in the R package, but schema() does!

18 / 62

`plotly_json()`: focus on `data` and `layout`

# If no plot is provided, it shows JSON of the previously printed plot
plotly_json()

19 / 62

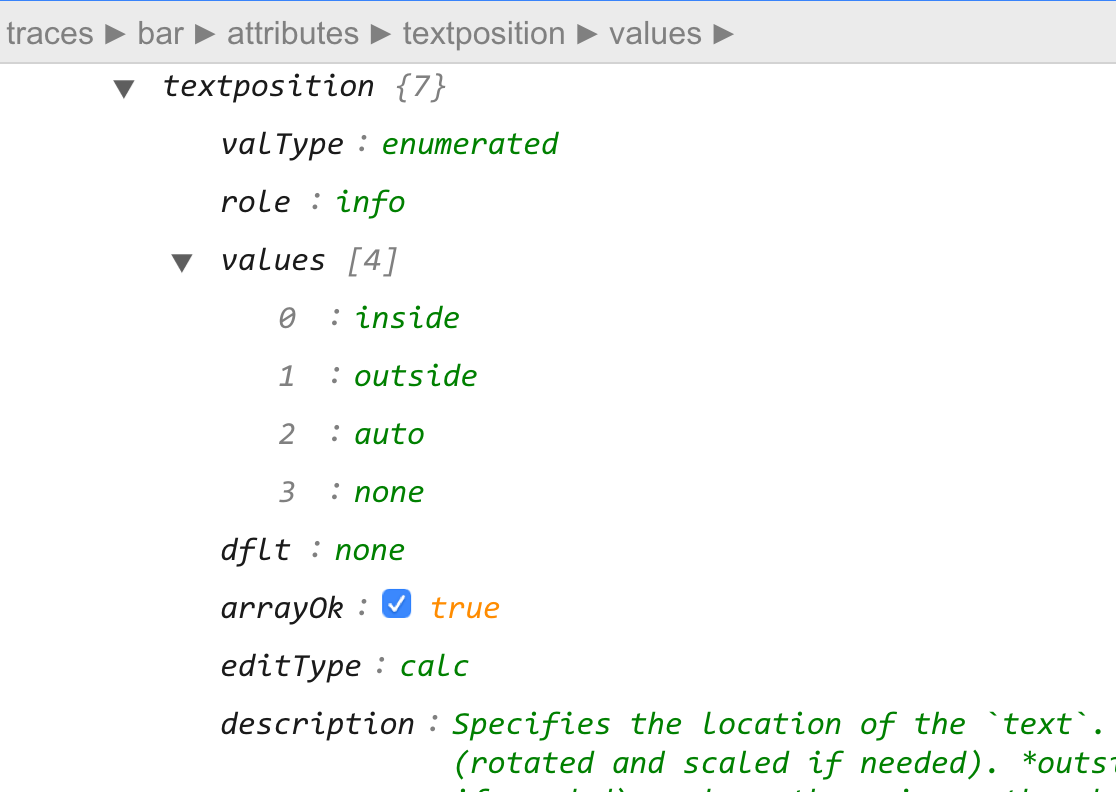

plotly_json() should match up with plotly.js' schema()?plot_ly documents R-specific arguments (e.g., color, stroke, etc).
schema() documents the actual plotly.js attributes (e.g., marker.color, marker.line.color, etc).
 20 / 62

Useful for finding plotly.js features

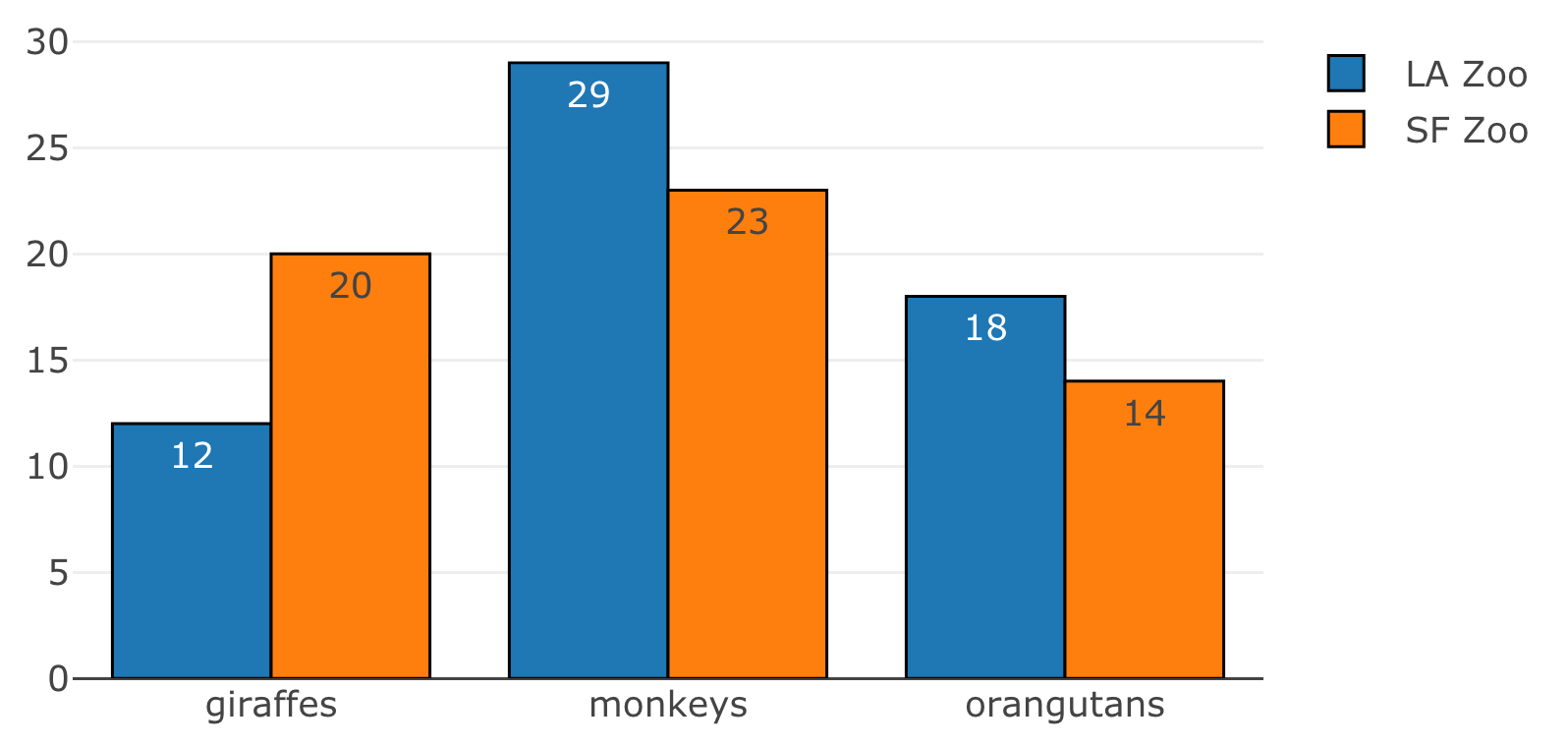

plot_ly(zoo_dat) %>%
  add_bars(
    x = ~animal,
    y = ~count,
    text = ~count,
    textposition = "auto",
    split = ~zoo,
    stroke = I("black")
  )

21 / 62

Also useful for learning about layout() & config()plot_ly() %>%
  layout(
    xaxis = list(range = c(-5, 5)),
    yaxis = list(range = c(-5, 5)),
    annotations = list(
      text = "Drag the rect",
      x = 0.5, xref = "paper",
      y = 0.5, yref = "paper"
    ),
    # shapes types: rect, circle, line
    shapes = list(
      type = "rect",
      x0 = 0, x1 = 1,
      y0 = 0, y1 = -1,
      fillcolor = "blue"
    )
  ) %>%
  # Two lesser known gems: editable & displayModeBar
  config(
    editable = TRUE,
    displayModeBar = FALSE
  )


22 / 62

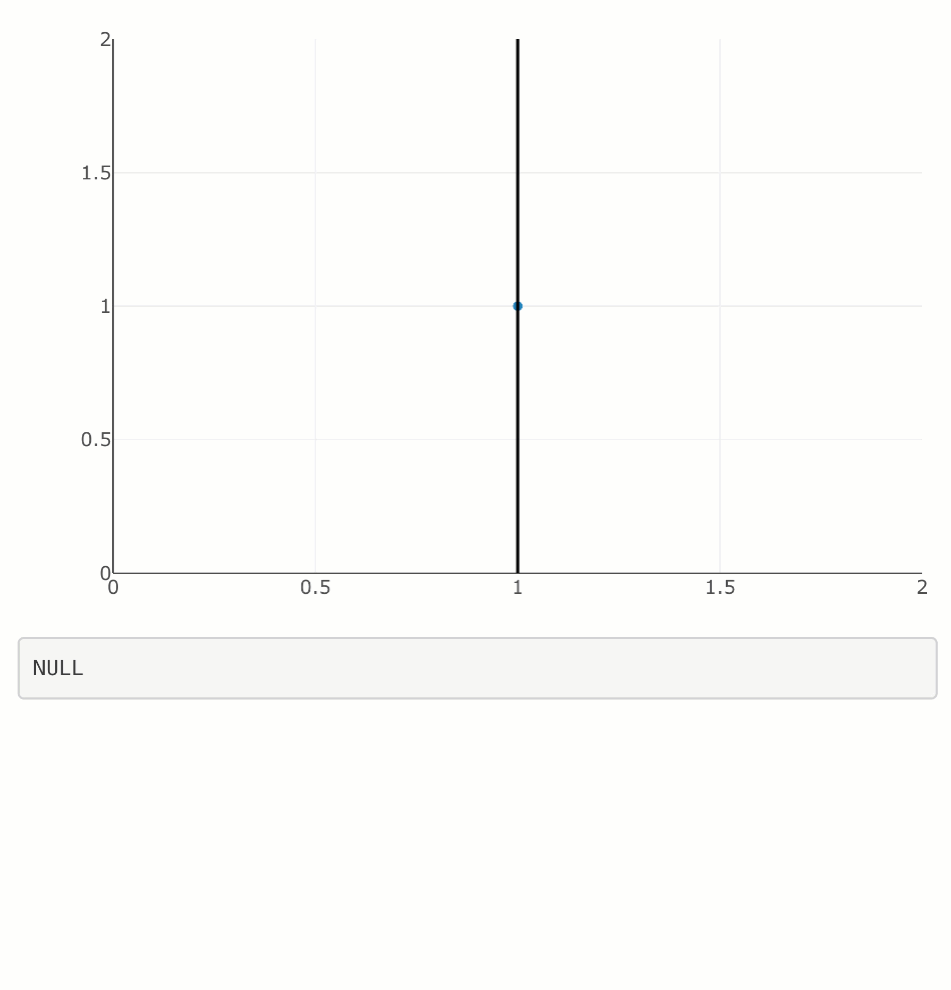

A practical example of editable charts

Later on, we'll see some cool ways to leverage edit events in Shiny.

23 / 62

Various R/plotly stuff that we don't have time to cover

Too much to list, but here's a start!

Saving plotly graphs as html, pdf, svg, png, etc.
- https://plotly-r.com/saving.html
Convert ggplot2 to plotly with ggplotly()
- https://plotly-r.com/overview.html#intro-ggplotly
- https://plotly-r.com/improving-ggplotly.html
First-class support for sf objects
- https://plotly-r.com/maps.html
Arranging multiple plotly objects in a single view
- https://plotly-r.com/arranging-views.html
Animation
- https://plotly-r.com/animating-views.html
Event handling in JavaScript
- https://plotly-r.com/javascript.html
Linking views client-side
- https://plotly-r.com/client-side-linking.html

The remainder of the workshop fits under linking views server-side with Shiny

24 / 62

Case study: drug reaction outcomes25 / 62

drug_outcomes() acquires reaction outcomes for a given drug name

library(openfda) # remotes::install_github("ropenhealth/openfda")
library(dplyr)
drug_outcomes <- function(name) {
  fda_query("/drug/event.json") %>%
    fda_filter("patient.drug.openfda.generic_name", name) %>%
    fda_count("patient.reaction.reactionoutcome") %>%
    fda_exec() %>%
    mutate(reaction = recode(term,
        `1` = "Recovered/resolved",
        `2` = "Recovering/resolving",
        `3` = "Not recovered/not resolved",
        `4` = "Recovered/resolved with sequelae",
        `5` = "Fatal", `6` = "Unknown"))
}
drug_outcomes("fentanyl")
#>   term count                         reaction
#> 1    5 31515                            Fatal
#> 2    6 30624                          Unknown
#> 3    1 14641               Recovered/resolved
#> 4    3 13691       Not recovered/not resolved
#> 5    2  4248             Recovering/resolving
#> 6    4   406 Recovered/resolved with sequelae

26 / 62

Visualizing outcomes for a few drugs

drugs <- c(
  "fentanyl",
  "oxycodone",
  "morphine"
)
lapply(drugs, drug_outcomes) %>%
  setNames(drugs) %>%
  bind_rows(.id = "drug") %>%
  plot_ly(
    y = ~reaction,
    x = ~count,
    color = ~drug
  ) %>%
  add_bars()

27 / 62

Same data, different look

28 / 62

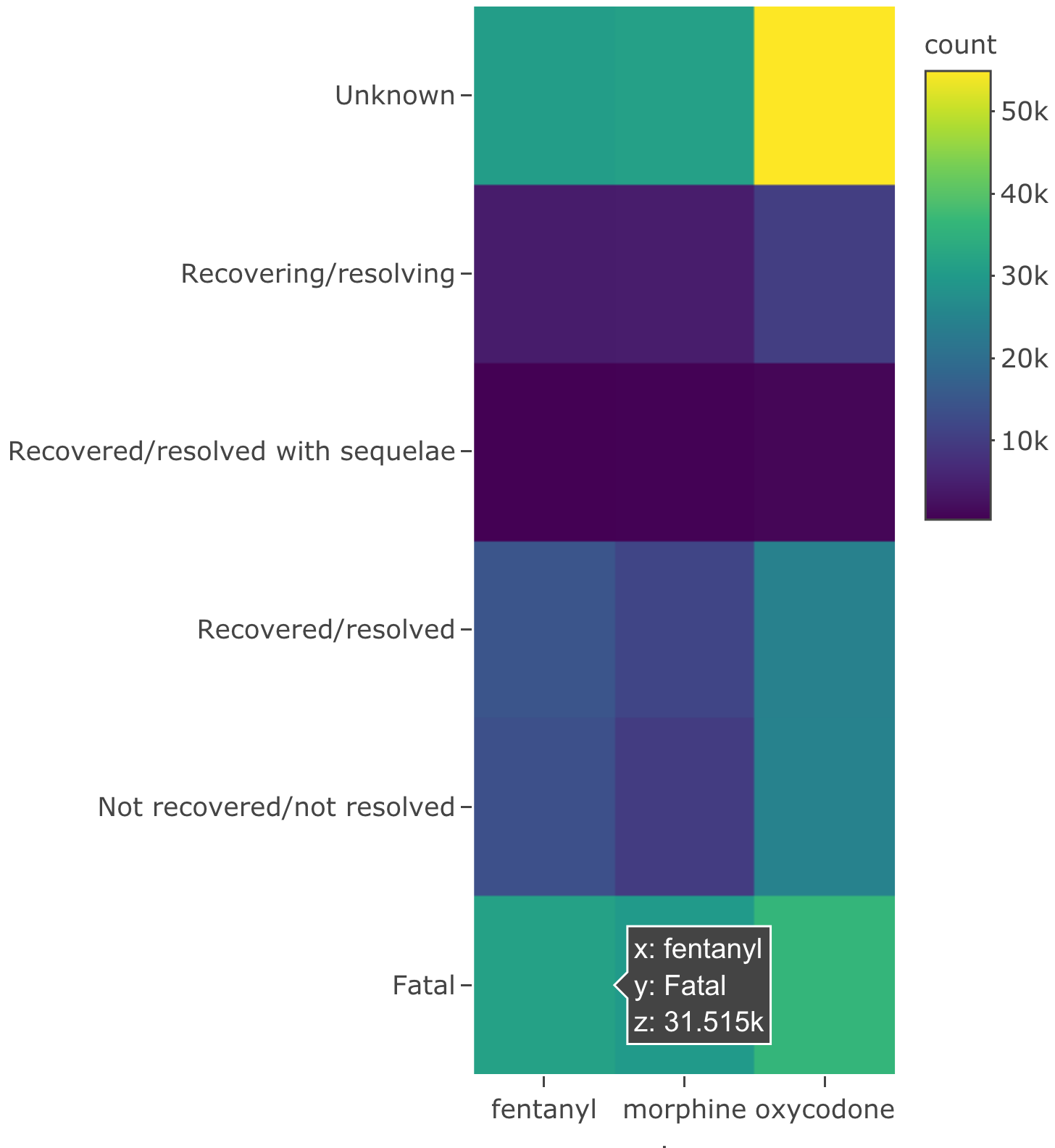

Heatmap of 1000 drug outcomes (made with heatmaply and plotly)

Not only is the visual technique more scalable, but with heatmaply, it's easy to reorder columns so that "similar" drugs next to each other.

29 / 62

Bi-plot of 1000 drug outcomes (made with shiny and plotly)30 / 62

Overview first, then zoom and filter, then details on demand

Ben Shneiderman

Sound advice for any high-dimensional datavis problem

31 / 62

The end goal

What follows is a series of exercises that build up to this linked scatterplot + bar chart functionality

Along the way, we'll learn generally useful techniques for linking multiple views with shiny+plotly (read more at https://plotly-r.com/linking-views-with-shiny.html)

32 / 62

Hello Shiny

Here's an Shiny app with a plotly graph that updates in response to a dropdown:

file.edit("shiny/00/app.R")
shiny::runApp("shiny/00")

33 / 62

Hello user input

Many htmlwidget packages allow you to listen to user interaction with the widget. Just to name a few, plotly, leaflet, and DT all have this functionality. Here's a simple DT example:

file.edit("shiny/01/app.R")
shiny::runApp("shiny/01")

34 / 62

Your Turn: Responding to click events

The following Shiny app shows how to access click events tied to the scatterplot.

file.edit("shiny/02/app.R")
shiny::runApp("shiny/02")

Follow the "Your Turn" directions to extend the functionality of this app (to see the "solution", run shiny::runApp("shiny/02-solution"))

05:00

35 / 62

Hello reactive values

The following Shiny app prints the time difference between button clicks to the R console.

file.edit("shiny/03/app.R")
shiny::runApp("shiny/03")

Note that:

In order to compute the difference, Shiny needs to 'remember' the time the last click occurred (reactiveVal() provides mechanism for doing so).
Reactive values are very similar to input values -- when their value changes, it 'invalidates' any code that depends on it.

36 / 62

Your Turn: Managing event data

The following Shiny app shows how to accumulate (i.e., track the history) of click events

file.edit("shiny/04/app.R")
shiny::runApp("shiny/04")

Follow the "Your Turn" directions to extend the functionality of this app. There are many ways to go about this, so there are two "solutions".

05:00

37 / 62

Your Turn: Routing event data

The following Shiny app shows how to color points on click.

file.edit("shiny/05/app.R")
shiny::runApp("shiny/05")

Follow the "Your Turn" directions to extend the functionality of this app (to see the "solution", run shiny::runApp("shiny/05-solution"))

05:00

38 / 62

Your Turn: Scoping event listeners

Click on the bar chart of the previous app.

Why does this generate an error?
Can you prevent the error from happening (Hint: see arguments section of ?event_data)?

03:00

39 / 62

40 / 62

However...41 / 62

Improving performance

Everytime we click a point, the scatterplot is regenerated on the server. This means:
1. The R code in renderPlotly() is executed.
2. The plot's JSON is sent over-the-wire from server to client.
3. plotly.js redraws the scatterplot from scratch
But, we only need to change the size/color of the clicked marker!
For 1,000 points, this 'naive' approach is fine, but updates will become unnecessarily responsive with larger data.
To acheive faster updates, we can trigger partial modifications to a plotly graph.
- The underlying plotly.js library provides several JavaScript functions for doing so.
- We can call these functions from R/Shiny using plotlyProxy().

42 / 62

I wont' lie, `plotlyProxy()` is difficult to use!

It interfaces directly with plotly.js, so you need to be careful about:
- 0-based indexing
- R to JSON conversion
- plotly.js' sometimes quirky interface
- Can't use 'R-specific' things (e.g., no color/stroke argument)
When things go wrong, it can be difficult to debug...hopefully we'll make it easier in the future!
When things go right, it makes your app logic a bit more difficult to reason about (because, side effects!)

43 / 62

Hello `Plotly.restyle`

The following Shiny apps use plotly.js' restyle function to flip marker.color to black/red

file.edit("shiny/06/01-all-colors.R")
file.edit("shiny/06/02-single-color.R")

44 / 62

Your Turn: Restyling markers

The following Shiny app uses plotlyProxy() to avoid a full redraw of the scatterplot when a point is clicked.

file.edit("shiny/06/app.R")
shiny::runApp("shiny/06")

Your Turn: find the code that updates the clicked point, how does it work?

03:00

45 / 62

plotly.js methods I use most often

restyle: modify trace(s).
relayout: modify the layout.
addTraces/deleteTraces: add/remove traces
- Adding more traces is sometimes unnecessary expensive (use restyle() if you can!)
react: supply a new figure.
- Has some rudimentary support for smooth transitions.
extendTraces: add data to a trace.
- Useful for streaming data

plotly_example("shiny", "stream")

We're not going to learn these, just know they are available to you!

46 / 62

Basic drill-down with shiny+plotly

I often get asked about drill-down in Shiny or plotly.
- There's no 1st class support, but that's OK!
If you can "manage state" with reactiveVal(), you can implement your own drill-down!

47 / 62

The sales datasetsales <- readr::read_csv("data/sales.csv")
select(sales, category, sub_category, sales)
#> # A tibble: 9,994 x 3
#>    category        sub_category  sales
#>    <chr>           <chr>         <dbl>
#>  1 Furniture       Bookcases    262.
#>  2 Furniture       Chairs       732.
#>  3 Office Supplies Labels        14.6
#>  4 Furniture       Tables       958.
#>  5 Office Supplies Storage       22.4
#>  6 Furniture       Furnishings   48.9
#>  7 Office Supplies Art            7.28
#>  8 Technology      Phones       907.
#>  9 Office Supplies Binders       18.5
#> 10 Office Supplies Appliances   115.
#> # … with 9,984 more rows

sales %>%
  count(category, wt = sales)
#> # A tibble: 3 x 2
#>   category              n
#>   <chr>             <dbl>
#> 1 Furniture       742000.
#> 2 Office Supplies 719047.
#> 3 Technology      836154.

48 / 62

Sales by category

sales %>%
  count(category, wt = sales)
#> # A tibble: 3 x 2
#>   category              n
#>   <chr>             <dbl>
#> 1 Furniture       742000.
#> 2 Office Supplies 719047.
#> 3 Technology      836154.

sales %>%
  count(category, wt = sales) %>%
  plot_ly() %>%
  add_pie(labels = ~category, values = ~n)

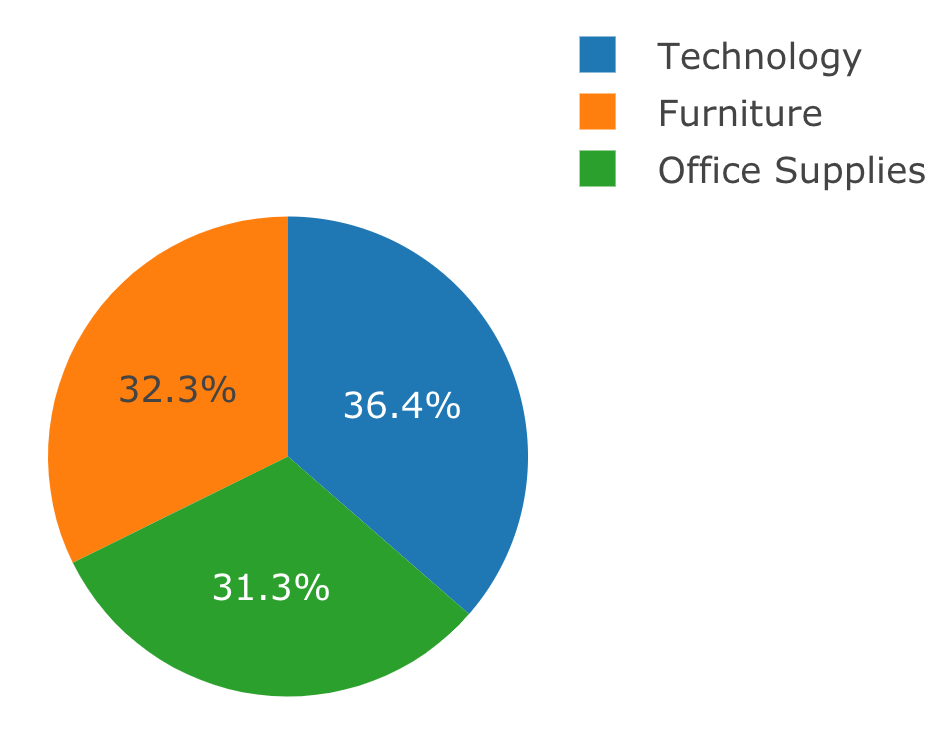

49 / 62

Sales within furniture

sales <- readr::read_csv("data/sales.csv")
sales %>%
  filter(category == "Furniture") %>%
  count(sub_category, wt = sales)
#> # A tibble: 4 x 2
#>   sub_category       n
#>   <chr>          <dbl>
#> 1 Bookcases    114880.
#> 2 Chairs       328449.
#> 3 Furnishings   91705.
#> 4 Tables       206966.

sales %>%
  filter(category == "Furniture") %>%
  count(sub_category, wt = sales) %>%
  plot_ly() %>%
  add_pie(labels = ~sub_category, values = ~n)

50 / 62

Drill-down demo

The following Shiny app implements a drill-down for sales category/sub-category

file.edit("shiny/07/app.R")
shiny::runApp("shiny/07")

Let's add a title to the sub-category pie chart showing what category is currently selected.

51 / 62

Your turn

Watch the other 3 videos of drill-down visualizations of this same sales dataset listed here

https://plotly-r.com/linking-views-with-shiny.html#drill-down

How many reactive values are needed in each example?

(Hint: remember that one reactiveVal() was used to remember which category was clicked in the pie drill-down)

05:00

52 / 62

`event_data()` supports many event types!

53 / 62

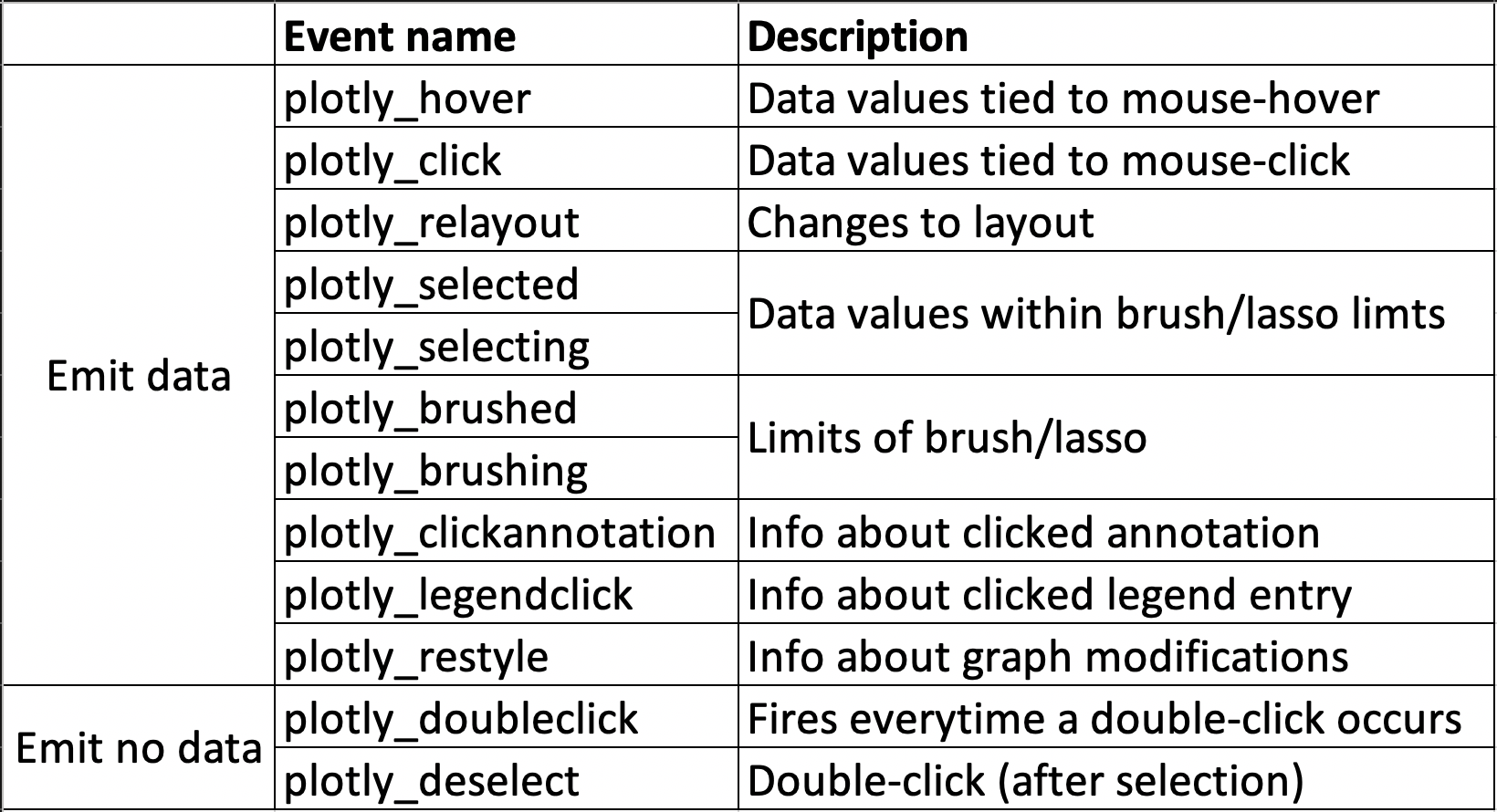

Common 2D events

plotly_example("shiny", "event_data")

54 / 62

Advanced application: cross-filtering

Makes clever use of plotly_brushing, event scoping, and Plotly.restyle() to efficiently alter bar heights

plotly_example("shiny", "crossfilter")

55 / 62

3D events

Brushing events aren't (yet) supported, but most everything else is!

plotly_example("shiny", "event_data_3D")

56 / 62

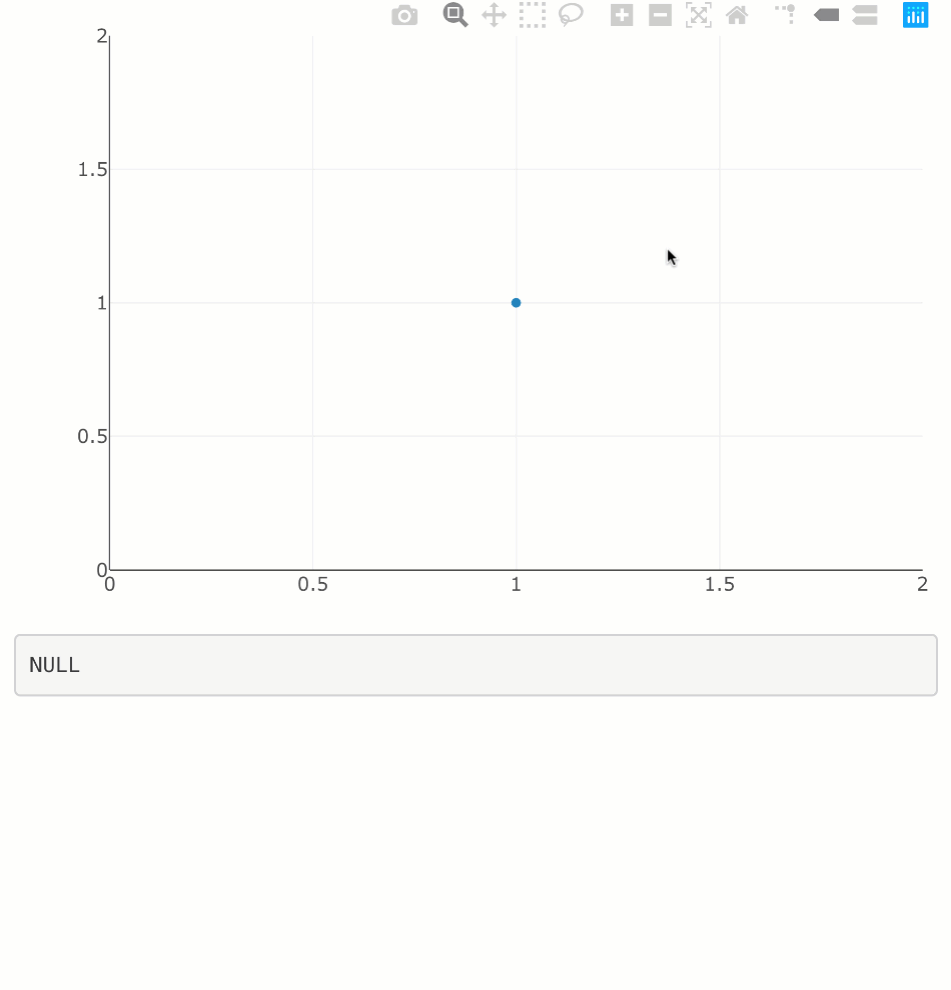

Relayout events

ui <- fluidPage(
  plotlyOutput("p"),
  verbatimTextOutput("info")
)
server <- function(input, output) {
  output$p <- renderPlotly({
    plot_ly(x = 1, y = 1)
  })
  output$info <- renderPrint({
    event_data("plotly_relayout")
  })
}
shinyApp(ui, server)

57 / 62

Listening to layout edits

ui <- fluidPage(
  plotlyOutput("p"),
  verbatimTextOutput("info")
)
server <- function(input, output) {
  output$p <- renderPlotly({
    plot_ly(x = 1, y = 1) %>%
      layout(
        shapes = list(
          type = "line",
          x0 = 0.5, y0 = 0,
          x1 = 0.5, y1 = 1,
          xref = "paper",
          yref = "paper"
        )
      ) %>%
      config(edits = list(shapePosition = TRUE))
  })
  output$info <- renderPrint({
    event_data("plotly_relayout")
  })
}

58 / 62

Responding to line edits

plotly_example("shiny", "drag_lines")

59 / 62

Responding to marker edits

plotly_example("shiny", "drag_markers")

60 / 62

Your Turn: (Final) your turn

Choose one of the following:

Ask me a question (through sli.do)
Apply something you learned to a dataset of your choice.
Run a plotly_example() from the slides and dissect how it works.

61 / 62

Thanks!

Resources for more learning:

https://plotly-r.com
https://plot.ly/r
https://talks.cpsievert.me
https://vimeo.com/cpsievert

Find me online:

Web: http://cpsievert.me/
Twitter: @cpsievert
GitHub: @cpsievert
Email: cpsievert1@gmail.com

62 / 62

Your turn

(1) Open the slides in Firefox: bit.ly/R_Pharma

(2) Go to this address https://rstudio.cloud/project/446255. This hosted RStudio instance contains materials for today's workshop.

Click "Save a Permanent Copy" to copy the project to your account.

(3) Ask me any question at any time by going to slido.com and enter event code #8464 (or use this link). I'll try to check these questions periodically (upvote questions if you'd like them answered!)

05:00

2 / 62

Help

Keyboard shortcuts

↑, ←, Pg Up, k

Go to previous slide

↓, →, Pg Dn, Space, j

Go to next slide

Home

Go to first slide

End

Go to last slide

Number + Return

Go to specific slide

b / m / f

Toggle blackout / mirrored / fullscreen mode

Clone slideshow

Toggle presenter mode

Restart the presentation timer

?, h

Toggle this help

Interactive dataviz on the web with R, plotly, and shiny

Carson Sievert Software Engineer, RStudio

Slides: bit.ly/R_Pharma

Your turn

A minimal bar chart

Plotly figures are JSON

Now in R, with plot_ly()

plot_ly() syntax

plot_ly() syntax

plot_ly() syntax

plotly_json() to view underlying JSON

plot_ly() syntax

plot_ly() syntax

plot_ly() color mapping

plot_ly() color mapping

plot_ly() color mapping

plot_ly() syntax

Your turn

Getting help

Documentation

Q&A

Debugging, in general

plotly_json(): focus on data and layout

plotly_json() should match up with plotly.js' schema()

Useful for finding plotly.js features

Also useful for learning about layout() & config()

A practical example of editable charts

Various R/plotly stuff that we don't have time to cover

The remainder of the workshop fits under linking views server-side with Shiny

Case study: drug reaction outcomes

Visualizing outcomes for a few drugs

Same data, different look

Heatmap of 1000 drug outcomes (made with heatmaply and plotly)

Bi-plot of 1000 drug outcomes (made with shiny and plotly)

Overview first, then zoom and filter, then details on demand

The end goal

Hello Shiny

Hello user input

Your Turn: Responding to click events

Hello reactive values

Your Turn: Managing event data

Your Turn: Routing event data

Your Turn: Scoping event listeners

However...

Improving performance

I wont' lie, plotlyProxy() is difficult to use!

Hello Plotly.restyle

Your Turn: Restyling markers

plotly.js methods I use most often

Basic drill-down with shiny+plotly

The sales dataset

Sales by category

Sales within furniture

Drill-down demo

Your turn

event_data() supports many event types!

Common 2D events

Advanced application: cross-filtering

3D events

Relayout events

Listening to layout edits

Responding to line edits

Responding to marker edits

Your Turn: (Final) your turn

Thanks!

Your turn

Help

Carson Sievert
Software Engineer, RStudio

Now in R, with `plot_ly()`

`plot_ly()` syntax

`plot_ly()` syntax

`plot_ly()` syntax

`plotly_json()` to view underlying JSON

`plot_ly()` syntax

`plot_ly()` syntax

`plot_ly()` color mapping

`plot_ly()` color mapping

`plot_ly()` color mapping

`plot_ly()` syntax

`plotly_json()`: focus on `data` and `layout`

`plotly_json()` should match up with plotly.js' `schema()`

Also useful for learning about `layout()` & `config()`

I wont' lie, `plotlyProxy()` is difficult to use!

Hello `Plotly.restyle`

`event_data()` supports many event types!
